Amplificadores de potencia para HF v RF


Los circuitos amplificadores han recibido la máxima atención en el desarrollo de circuitos de estado sólido. Los transistores (dispositivos del estado sólido de tres terminales) requieren redes de acoplamiento de impedancias tanto para la entra como para la salida. La configuración básica del dispositivo transistor de tres terminales se muestra en la figura.

Algunas de las características más notables de los amplificadores para altas frecuencias que utilizan transistores bipolares son:

•    Baja sensibilidad al ruido
•    Alta linealidad
•    Ganancias en potencia altas y variables
•    Ancho de banda óptimo
•    Alto desempeño arriba de 4GHz
•    Bajo costo

Los circuitos amplificadores de potencia contienen transistores capaces de manejar alta potencia. Estos operan normalmente a tensiones mayores que los transistores de baja potencia, y por lo tanto requieren a menudo de una fuente de alimentación separada.

Algunos transistores de potencia pueden exceder tensiones de 450V y 10A. Como estos transistores necesitan disipar potencias elevadas, se diseñan en forma diferente de los transistores de baja potencia, y pueden incluir circuitos de protección para limitar la corriente. Las opciones más comunes en el diseño de amplificador en alta frecuencia pueden ser:

1.   Reducir la ganancia por etapa para reducir el efecto Miller.
2.   Reducir la impedancia de la fuente de la señal de entrada.
3.   Seleccionar un transistor de más alta frecuencia.
4.   Utilizar una configuración que no sea sensible a la frecuencia, como la Base - Colector o la cascode.

Cuando la potencia de salida requerida excede la capacidad de un amplificador se utilizan múltiples etapas o módulos que se combinan para poder producir el resultado requerido. Estas configuraciones se denominan separadores y combinadores. El separador divide la señal de entrada en múltiples salidas de igual amplitud y luego son aplicadas a cada módulo. El combinador luego recombina las salidas de los módulos y la señal queda lista para alimentar la carga. Los combinadores están relacionados muy de cerca con los transformadores de banda ancha en diseñyo c onstrucción. Este método se utiliza entonces para mejorlaar salida de potencia del os amplificadores de potencia.

Clases de operación de los amplificadores de potencia

El propósito de un amplificador de potencia es proporcionar una tensión de salida con una máxima excursión simétrica sin distorsión a una baja resistencia de carga. En la práctica, un sistema suele consistir de varias etapas de amplificación, tanto para pequeña señal como para RF, la última de las cuales suele ser un amplificador de potencia. La carga alimentada por este amplificador de potencia puede ser un altavoz, un excitador, un solenoide o algún otro dispositivo analógico.

La clasificación de los amplificadores de potencia se lleva a cabo considerando distintas técnicas de polarización lo que conduce a distintos modos de operación. Los modos de operación principales para el diseño de amplificadores de potencia son los siguientes:

•    Operación en Clase A
•    Operación en Clase B
•    Operación en Case AB
•    Operación en Clase C

Cabe mencionar que estos amplificadores de potencia se clasifican de acuerdo con el porcentaje del tiempo que la corriente de colector es distinta de cero. Estos modos de operación surgen para brindar funcionalidad a amplificadores que están diseñados para operar a pequeña señal y a bajas frecuencias por lo que toda la teoría relacionada a ellos asume invariablemente el uso de dispositivos activos y pasivos que manejen esta clase de señales. Por otro lado se tienen las tecnologías de microondas con las que aún se requiere de los principios de operación mencionados anteriormente pero los dispositivos asociados al amplificador mismo son distintos ya que están calculados y construidos para operar en un espectro de frecuencias donde se presentan fenómenos electromagnéticos totalmente distintos delo s que se presentan a bajas frecuencias.

Diferencias entre los amplificadores para HF y los amplificadores para RF

Por lo que se ha visto hasta aquí, cuando se habla de la operación de un amplificador en altas frecuencias no se ha especificado exactamente su rango de operación (o ancho de banda). En referencia al espectro de frecuencias ocupadas en comunicaciones, estas van desde los 30MHz hasta 30GHz. Esto lleva a suponer que en un rango de frecuencias tan vasto existen distintas técnicas de funcionamiento y construcción de los transistores que se empleen en equipos específicos; por ejemplo un amplificador para 30Mz no tendrá la misma configuración que uno que se requiera para comunicaciones vía satélite en el orden de los 30GHz o más. Se ha decidido entonces incluir lo relacionado con los transistores de altas frecuencias a lo largo de este trabajo para destacar tanto su importancia, su funcionamiento, aplicaciones, ejemplos y principalmente sus diferencias con los amplificadores para RF.

En resumen se puede decir entonces que trabajar en megahertz puede diferir en muchos aspectos de trabajar en gigahertz. De hecho en los ejemplos ilustrados más adelante se mencionan tipos de transistores que no son muy conocidos debidos a que no se requieren para propósitos muy concretos en frecuencias extremadamente altas. La parte más importante hasta aquí es entonces diferenciar un transistor de HFy un de RF. Los transistores que operan en HF son afectados en su desempeño por el efecto de miller. Para reducir la impedancia de conducción o la capacitancia de retroalimentación se emplean distintos tipos de configuraciones, estas se ilustran en la siguiente figura.


En el primer circuito en emisor seguidor reduce la impedancia de conducción vista desde la entrada del amplificador emisor común. Esto reduce considerablemente la degradación del desempeño en alta frecuencia causado por la frecuencia de transición fT y CcbGv. El segundo circuito es la clásica configuración cascode en la cual la etapa emisor común controla la etapa de base común eliminando de esta manera el efecto Miller representado por CcbGv. En la tercera configuración el seguidor conduce la etapa de base común eliminando el efecto Miller y reduciendo la conducción de la impedancia al mismo tiempo. Este es el amplificador diferencial común con resistores de colector no balanceados y una entrada a tierra. Otra característica que debe mencionarse respecto a los amplificadores de HF es que no son usados, como los de RF, para equipos de telecomunicaciones como los que se han venido mencionando pues la potencia requerida sobrepasa la capacidad de cualquier transistor convencional (de propósito general), esto es, el hecho de que se cuente con amplificadores para altas frecuencias no implica que puedan utilizarse para amplificación de potencia y menos para frecuencias extremadamente altas (del orden de 30 o más GHz). Esto se realiza con transistores especializados en los que se emplean técnicas de fabricación y materiales distintos, así como configuraciones de circuito que incluyen elementos que no se encuentran nunca en circuitos de HF, como lo son líneas de transmisión, guías de onda y transformadores. Por estas razones no se profundizará más en el análisis de los amplificadores de HF pues el objetivo es analizar los amplificadores de potencia para RF.

Amplificadores modulares

Cuando se necesita de un amplificador para RF se pensaría que es requerido realizar siempre un diseño del amplificador, un análisis detallado y múltiples pruebas con múltiples configuraciones o componentes individuales, principalmente transistores. Esto tendría muchas desventajas por cuestiones de estabilidad, tamaño y costos principalmente. Afortunadamente existen módulos de amplificadores 'empaquetados' que están disponibles con distintos proveedores en configuraciones que satisfacen una gran cantidad de necesidades. De hecho casi todos los componentes de RF se adquieren como módulos. Algunos ejemplos son los osciladores, los mezcladores, los moduladores, los atenuadores controlados por voltaje, los combinadores y divisores de potencia, los circuladores, los acopladores direccionales y los amplificadores en sus distintas modalidades. En su forma más básica el amplificador aún no empaquetado es un circuito híbrido de película delgada con ganancia en un amplio rango de frecuencias. Una presentación común es el paquete (circuito integrado) de 4 patas (pines).


Existen docenas de amplificadores de RF disponibles en la actualidad que cumplen con distintas finalidades y propósitos, algunos por optimizados para bajo ruido y otros para alta ganancia en potencia o grandes rangos dinámicos. Los amplificadores individuales pueden diseñarse para operar sobre rangos de frecuencias o sobre bandas de frecuencias muy angostas como los que se usan en comunicaciones que son los más discutidos en este trabajo. Bajo este tipo de presentación compacta o modular se encuentra por ejemplo el UTO-514 de Avantek que presenta una ganancia de 15dB sobre un rango de frecuencias de 30MHz  a 200MHz (amplificador de HF), aunque también cuenta con amplificadores con anchos de banda de hasta 2GHz. Como se ha comentado en otras secciones, los amplificadores de banda ancha de hasta 18GHz están fabricados usando tecnología GaAsFET y HEMT.

Los amplificadores que se usan sobre bandas muy angostas de frecuencias se pueden optimizar para un desempeño de bajo ruido. Los excelentes amplificadores comerciales que se emplean en bandas de comunicaciones, corno por ejemplo el amplificador AM- 4285 de Avantek, con una ganancia de 50dB (316.22watts), una banda de 3.7-4.2GyH z una figura de ruido de 1.5dB( 1.1W atts), puede ser empleado como receptor satelital y puede estar al alcance de casi de cualquiera persona. Con el modelo AM-7724 se pueden obtener ganancias de 35dB (56.23watts) en la banda de 7.25-7.75GHz.

Como en muchas otras áreas de comercialización de dispositivos electrónicos, existe una gran competencia comercial por estos módulos amplificadores así como por otros componentes de RF modulares.

En la práctica, cuando se diseña un sistema de RF y se cuenta con estos módulos comúnmente basta con haber elegido a través de catálogos o manuales el módulo apropiado y conectarlo con cable coaxial para poder armar el sistema.

Otros dispositivos de amplificación en RF

Amplificadores paramétricos


Estos dispositivos amplifican variando un parámetro del circuito entonado. Los amplificadores paramétricos tienen una analogía con un péndulo que oscila al ser tirado verticalmente y con su punto de flexión inferior fijo. En el amplificador paramétrico se puede variar por ejemplo la capacitancia del circuito entonado con un varactor (capacitor de voltaje variable) conduciéndola con una señal de ‘bombeo’. Los amplificadores paramétricos se emplean principalmente en amplificaciones de bajo ruido.

Masers

Maser es el acrónimo para amplificación de microondas por emisión estimulada de radiación. Estos dispositivos son básicamente amplificadores atómicos o moleculares de difícil construcción y uso pero son los amplificadores que producen la menor cantidad de ruido que ningún otro amplificador.

GaAs FETs

El último tipo de amplificadores de microondas y el más sencillo a nivel mundial. Su desempeño es comparable con el de los amplificadores paramétricos. Los amplificadores comerciales disponibles actualmente de este tipo proporcionan 28dB de ganancia a 10GHz con una potencia de ruido de tan solo 2dB. El más reciente amplificador del tipo GaAs FETs es el llamado HEMTs, que fue comentado y descrito antes, y significa transistor de alta movilidad de electrones, el cual produce niveles de ruido extremadamente bajo a frecuencias extremadamente altas como por ejemplo 0.12dB a 8.5GHz.

Klystrons y tubos de ondas viajeras

Estos amplificadores de tubos de vacío usados en frecuencias de microondas toman ventaja de los efectos de tiempo de transito del tubo. Una variación conocida como klystron de reflejo trabaja como un oscilador al lanzar su flujo de electrones hacia adentro de él. Existen Klystrons disponibles que pueden proporcionar continuamente una salida de 0.5W de RF a 2GHz.

Magnetrones

Este dispositivo es el corazón de los radares y los hornos de microondas. Su funcionamiento consiste en un tubo de oscilación de alta potencia lleno de pequeñas cavidades resonantes y operando en un fuerte campo magnético que hace que los electrones viajen en espiral a través de su interior.

Diodos Gunn, IMPATT y PIN

Estos dispositivos se usan ampliamente en UHF y microondas. Los diodos Gunn se usan como osciladores de baja potencia en el rango de 5 -100GHz produciendo salidas de potencia de 100mW. Evidentemente no son amplificadores de potencia pero junto con esto desempeñan trabajos conjuntos. Los diodos IMPATT son análogos a los kylstrons con capacidades de unos cuantos watts a pocos gigahertz. Los diodos PIN se comportan como resistencias de voltaje variable y se utilizan como interruptores de señales de microondas convirtiendo un corto circuito a través de las guías de onda.

Hernández Caballero Indiana
Asignatura: CAF
Fuente:http://148.206.53.231/UAM1118.PDF

Current-feedback operational amplifier



The current feedback operational amplifier  or CFB op-amp  is a type of electronic amplifier whose inverting input is sensitive to current, rather than to voltage as in a conventional voltage-feedback (VFB) operational amplifier. The CFB op-amp was invented by David Nelson at Comlinear Corporation, and first sold in 1982 as a hybrid amplifier, the CLC103. The first patent covering a CFB op-amp is , David Nelson and Kenneth Saller (filed in 1983). The first integrated circuit CFB op-amps were introduced in 1987 by both Comlinear and Elantec (designer Bill Gross). They are usually produced with the same pin arrangements as VFB op-amps, allowing the two types to be interchanged without rewiring when the circuit design allows. In simple configurations, such as linear amplifiers, a CFB op-amp can be used in place of a VFB op-amp with no circuit modifications, but in other cases, such as integrators, a different circuit design is required. The classic four-resistor differential amplifier configuration also works with a CFB op-amp, but the common-mode rejection ratio is poorer than that from a VFB op-amp.

Operation

Referring to the schematic shown, the section marked in red forms the input stage and error amplifier. The inverting input (node where emitters of Q1 & Q2 are connected) is low-impedance and hence sensitive to changes in current. Resistors R1–R4 set up the quiescient bias conditions and are chosen such that the collector currents of Q1 & Q2 are the same. In most designs, active biasing circuitry is used instead of passive resistive biasing, and the non-inverting input may also be modified to become low impedance like the inverting input in order to minimise offsets.

With no signal applied, due to the current mirrors Q3/Q4 & Q5/Q6, the collector currents of Q4 and Q6 will be equal in magnitude if the collector currents of Q1 and Q2 are also equal in magnitude. Thus, no current will flow into the buffer's input (or equivalently no voltage will be present at the buffer's input). In practice, due to device mismatches the collector currents are unequal and this results in the difference flowing into the buffer's input resulting in an offset at its output. This is corrected by adjusting the input bias or adding offset nulling circuitry.

The section marked in blue (Q3–Q6) forms an I-to-V converter. Any change in the collector currents of Q1 and Q2 (as a result of a signal at the non-inverting input) appears as an equivalent change in the voltage at the junction of the collectors of Q4 and Q6. Cs is a stability capacitor to ensure that the circuit remains stable for all operating conditions. Due to the wide open-loop bandwidth of a CFB amplifier, there is a high risk of the circuit breaking into oscillations. Cs ensures that frequencies where oscillations might start are attenuated, especially when running with a low closed-loop gain.

The output stage (in cyan) is a buffer which provides current gain. It has a voltage gain of unity (+1 in the schematic).

VFB and CFB compared

The main reasons for choosing a CFB op-amp are to obtain a greater slew rate, and to avoid the constant gain-bandwidth product of VFB types. The bandwidth of a CFB op-amp depends only on the value of its feedback resistor. It is a common misconception that the CFB has an inherently higher bandwidth.

When CFB op-amps were first introduced, their bandwidths were huge compared to those of VFB types, making them desirable in high-frequency applications such as video and radiofrequency amplifiers adding to their reputation as high bandwidth amplifiers. Early models also had a reputation for instability, as the slightest parasitic capacitance at their inverting inputs caused them to oscillate. As the products matured, and circuit designers gained experience, the CFB op-amp became accepted as a standard circuit component. Meanwhile, the designers of VFB op-amps were forced to improve the bandwidths of their products, with the result that very fast VFB op-amps are now available.

CFB op-amps have very high slew rates, making them useful in video amplification where slew-rate limitation leads to distortion.

One of the trade-offs that designers must consider when choosing CFB op-amps is that these devices have high DC offsets. This makes them less suitable for high-precision or high-gain applications such as instrumentation amplifiers, and measuring instruments in general.

CFB op-amps also have higher current noise than VFB types, precluding their use as photodiode amplifiers. In other applications, their low voltage noise can be an advantage.

Finally, CFB op-amps are not optimised for single-supply operation, since the traditional output stage cannot swing closer than about 1.3V to the supply or ground.

Hernández Caballero Indiana
Asignatura: CAF
Fuente:http://www.reference.com/browse/wiki/Current-feedback_operational_amplifier

Application basics when using wideband voltage and current feedback op amps, Part 2 (of 2)


Understand the basics of current and voltage feedback op amps and where they fit, along with constraints and implications

With both current and voltage feedback operational amplifiers (op amp) available to the system designer, how do you decide which one to use? This article is the second of two parts. It reviews several applications that are most suitable to the current feedback type, then it introduces the fully differential amplifier (FDA). All applications covered in Part 1 for voltage  feedback op amps are also suitable for an FDA, but some particularly useful applications for this type of amplifier are shown here.

Keep in mind that applications requiring flexibility in the gain setting network will benefit from the gain bandwidth independence of the current feedback (CFB) design. As described in Part 1, the loop gain equation for a CFB includes only the feedback impedance while the gain element can be varied freely with minimal bandwidth interaction. The following examples exploit that advantage in several situations where a CFB would be the preferred solution.

Example A
If an inverting summing amplifier is required with a signal bandwidth that is independent of the number of channels summed or the required gains in those channels, a CFB amplifier should be used. Figure 1 shows an example of this approach using the high output voltage and current THS3091.
Figure 1. Inverting summing amplifier using the high voltage/current THS3091.

Here, we assume a 0 Ω source for each of the signal sources where each channel would see a gain of "2 V/V. For these CFB designs, the feedback resistor is first picked to be close to the recommended value for that particular CFB amplifier. Then, each input resistor should be selected according to the gain required by that channel.

Recall that this circuit implemented with a voltage feedback (VFB) has a bandwidth set by the noise gain (NG). For instance, five channels summed with a gain of -2 V/V will have a noise gain of 11. This condition would set a bandwidth for all five channels reduced to the [gain bandwidth product (GBP)]/11 even though each signal only sees a gain of -2 V/V. Using a CFB for this application retains the bandwidth much better because the parallel combination of all gain resistors does not enter strongly into the loop gain equation.

By way of comparison, Figure 2 simulates a single channel of Figure 1 using first the CFB TH3091, then a similar VFB THS4031. The THS4031 is a low-noise, high-voltage VFB that offers approximately 200 MHz GBP.


Figure 2. Comparative frequency response for one channel of Figure 1 using THS3091 and THS4031.

The circuit of Figure 1 produces a noise gain of 11, which shows up as a signal bandwidth close to 18 MHz for the THS4031, while the THS3091 gives about 200 MHz for each channel.

Example B

Where frequency response peaking is required, a CFB amplifier permits this characteristic to be achieved with reduced interaction between the gain shaping and the amplifier bandwidth. Figure 3 shows an example single stage of a zero/pole pair using a high output current OPA691 CFB amplifier
Figure 3. Frequency response peaking circuit using the OPA691.

This example transitions from a gain of 2 V/V (6 dB) to a gain of +20 V/V (26 dB) over a 2 MHz to 20 MHz span. Implementing this design with a VFB requires a minimum gain bandwidth product (GBP) in excess of (20 × 20 MHz) = 400 MHz in order to not immediately roll off at the maximum gain setting.

Figure 4 shows this simulation where the improved performance of the CFB OPA691 is apparent.
Figure 4. Peaking circuit frequency response with CFB (OPA691) and VFB (OPA690).

As a comparison, Figure 4 also shows the high output current OPA690 VFB; note that the 300 MHz GBP of the OPA690 is not quite enough for this application while the CFB OPA691 achieves the maximum 26 dB gain at 20 MHz and remains there up to an approximate -3 dB bandwidth of 100 MHz.

Example C
Sallen-Key, or voltage-controlled voltage source, active filters need a non-inverting gain amplifier that has a bandwidth far in excess of the desired filter bandwidth. While this type of filter can be implemented with VFB devices quite well, a CFB device would be preferred where higher frequency cutoff filters are needed, or where the amplifier gain needs to be flexible. The amplifier gain enters into the ideal filter transfer function as part of the Q setting equation. This gain also sets the low frequency gain in a low-pass filter design.

The local bandwidth of the op amp used in this design moves the actual filter poles away from the design targets. In the Sallen-Key low-pass filter, the actual poles move down and to the right in the complex s-plane. This shift gives an actual filter that has lower 0 and higher Q than targeted. To the extent that the amplifier bandwidth changes with gain setting, as it would with a VFB amplifier, the actual filter poles are impacted more strongly using a VFB over a range of gains in the design.

Using a CFB in this filter normally allows a more solid pole placement where the amplifier gain can be varied more freely in the design process because there will be minimal interaction between the required amplifier gain and the impact on the final filter pole locations.

Figure 5 shows an example 20 MHz low-pass Butterworth filter implemented using the CFB OPA695 that gives a passband gain of +4 V/V.
Figure 5. Second-order, low-pass, 20 MHz Butterworth filter using the CFB OPA695.

The resistor values have been adjusted slightly from an ideal analysis to account for the amplifier bandwidth effects and hit the desired frequency response exactly.

In this design, the OPA695 gives an amplifier bandwidth >400 MHz at a gain of +4 V/V (12 dB). This bandwidth gives a 20x margin to the desired filter poles. It is this bandwidth margin that allows the filter poles to be implemented with minimal production variation and holds the stop band rejection down to higher frequencies. All Sallen-Key filters show an increasing gain (or reduced stop band rejection) at very high frequencies as the closed loop output impedance of the amplifier increases sufficiently to support a feed through path through the filter feedback capacitor.

As a comparison, Figure 6 shows the filter of Figure 5 simulated first with the OPA695 and then with the VFB OPA820. Operating at a gain of +4 V/V, the OPA820 will have a bandwidth of about 80 MHz.

Figure 6. Second order, low-pass 20 MHz Butterworth Sallen-Key filter.

The OPA695 implementation hits the desired maximally flat Butterworth design with a 20 MHz cutoff almost exactly. The OPA820 placed into the same circuit shows a slight peaking and reduced bandwidth as predicted. This performance contrasts with the MFB filter discussed in Part 1 of this article, where a VFB is preferred and the effect of finite amplifier gain bandwidth product (GBP) moves the actual poles on a constant 0 circle to lower Q.

Example D
Where the gain needs to be adjusted, a CFB amplifier is preferred because it holds more constant bandwidth as that adjustment is made. Figure 7 shows an example non-inverting design where the adjustment is configured to provide a fine-scale tune from a gain of +2 to +4 V/V using a high output current OPA691.
Figure 7. Adjustable gain using the high output current OPA691.

In all of these CFB circuits, the feedback resistor is selected and fixed near the recommended value for that particular CFB device. Any adjustments or frequency response shaping is then done using only the gain element.

Since the loop gain does not depend strongly on the signal gain, this type of adjustment holds a more constant bandwidth using a CFB as opposed to a VFB implementation. Conversely, this circuit with the gain adjustment in the feedback resistor would have a significant frequency response variation when using a CFB.

To compare, Figure 8 shows the circuit of Figure 7 simulated at the gain extremes using both the CFB OPA691 and a very similar VFB device, the OPA690.
Figure 8. Adjustable gain small-signal bandwidth comparison.

At a gain of +2 V/V (6 dB), both parts show about the same bandwidth (280 MHz) where the OPA691 is closer to a Butterworth response while the OPA690 is bit more peaked. Adjusted to a gain of +4 V/V (12 dB), the OPA691 still holds >220 MHz bandwidth while the OPA690 drops to around 100 MHz.

Most simple circuits not mentioned thus far can generally use either a VFB or CFB device. It is sometimes suggested that some of these circuits cannot be implemented using a CFB device; this claim is often incorrect. One example that demonstrates this is the differencing amplifier.

Example E
A single amplifier differential stage (sometimes called a 'differencing' amplifier) can use either VFB or CFB devices. The common-mode rejection ratio (CMRR) of a CFB implementation appears to be lower when compared to an equivalent VFB design. However, that CMRR is the effect of the buffer gain loss across the input stage and is quite repeatable for a particular CFB part number. It is possible to tune up the CMRR to a much higher dc level for a CFB differencing amplifier by slightly increasing the resistor to ground on the non-inverting input.

Figure 9 shows a representative differencing amplifier using the very high slew rate, unity gain stable, VFB OPA690. Notice also that the resistors on the non-inverting side were adjusted down to achieve a matched input impedance for each source (if V1 and V2 are independent sources. See Reference 1 for an example of where they are not).
Figure 9. Wideband differencing amplifier using an OPA690.

A series resistor into the non-inverting input is then added to achieve bias current cancellation, which would only work to improve output offset voltage in a VFB implementation. This is assuming 0 Ω sources for each source and two independent sources.

This same circuit can be built using the CFB OPA691. Figure 10 shows a CMRR simulation where both inputs are tied together and driven.

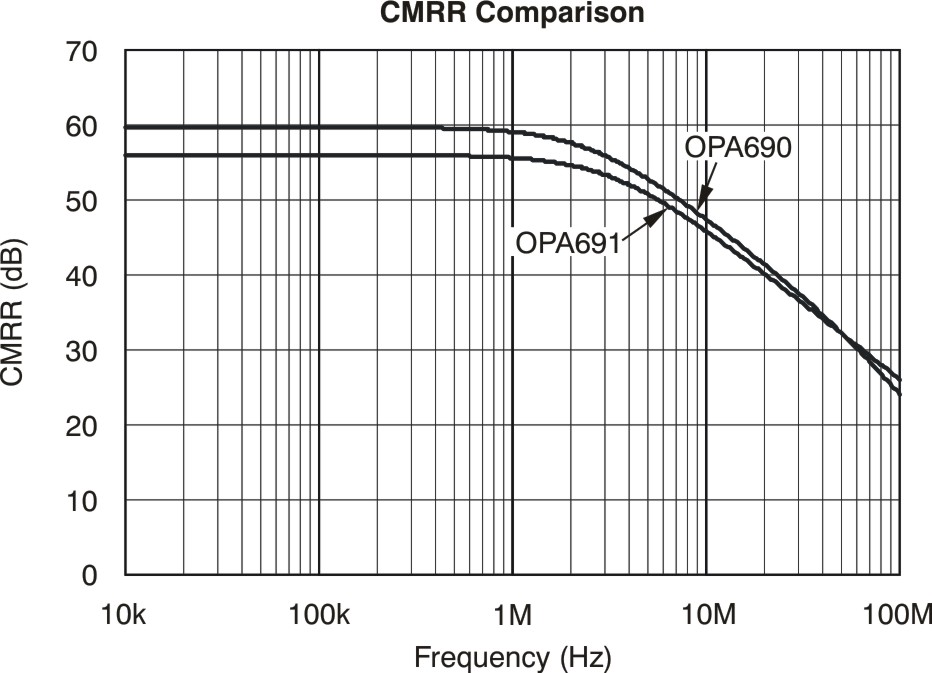

Figure 10. CMRR simulation for OPA690 and OPA691.

The resulting small output gain (large negative dB gain) is then input-referred and the negative taken to get a typical CMRR plot. The OPA690 shows slightly higher CMRR than the OPA691. In this case, the resistors of Figure 9 have been used in both simulations, and no adjustment for improved CMRR made in the OPA691 simulation.

Differential input/output circuits
An emerging class of amplifiers called fully differential amplifiers (FDA) easily can take a single or differential input signal. and produce a differential output centered on a user-selected common-mode operation point. An alternative approach in going differential-in to differential-out has been to use standard dual op amps. A brief review of that approach helps to set the background for the FDA. These approaches are useful also because once they are understood, they open up a large range of dual op amps to the designer for possible application.

Application A
Differential I/O circuits can be easily implemented using either a VFB or CFB. There is, however, some difference between a non-inverting or inverting input implementation with regard to how the common-mode voltage is treated. In the non-inverting input case, the two inputs show a high input impedance to the differential source (allowing filters or other passive circuits to be easily inserted up to these inputs). The common-mode gain from the non-inverting inputs to the differential outputs will be one.

Figure 11 shows an example of this design where the wideband, high output current, dual OPA2614 is used to implement a DSL driver.
Figure 11. Non-inverting differential I/O circuit using the OPA2614.

Here, the amplifier operates on a single +12 V supply and the filtered differential source is driven through blocking capacitors to the mid-supply referenced termination impedance. The differential gain is set to 6 V/V with a dc blocking capacitor in series with the gain resistor to further attenuate low-frequency noise and reduce output differential offset voltage.

Whether that capacitor is present in the circuit or not, the mid-supply reference on each non-inverting input shows up as the output common mode voltage as well. This circuit demonstrates a typical 1:2 step-up transformer at the output to a 100 Ω load, giving a nominal differential load of 50 ohms.

This circuit is often implemented using dual current feedback op amps (such as the OPA2677) but can give lower output noise using a decompensated dual voltage feedback op amp (for example, the OPA2614). Figure 12 shows the simulated frequency response for this circuit showing about 50 MHz bandwidth—more than adequate for most DSL line driver applications.

Figure 12. Non-inverting differential I/O small-signal frequency response.

In the inverting input, differential I/O implementation, the differential input impedance is the sum of the two gain resistors; the output common-mode voltage depends on the dc voltage applied to the non-inverting inputs and the dc gain for that signal path, along with the dc common-mode voltage of the source. If the sources are capacitively or transformer-coupled, the common-mode voltage applied to the non-inverting inputs will have a gain of one to the output.

Figure 13 shows an inverting differential I/O using the very low power OPA2684 dual CFB in a single +5 V supply with a mid-supply common-mode reference and an ac-coupled input interface.
Figure 13. Low power, inverting differential I/O using the OPA2684.

This circuit provides a common-mode output of 2.5 V with a differential gain of five and >100 MHz bandwidth while using only 3.6 mA total quiescent supply current.

Figure 13 also shows a differential ac input impedance of 400 ohms. One advantage of the OPA2684 is that the source impedance (possibly a filter) will not interact with the amplifier bandwidth. A dual VFB amplifier used here will work, but the source impedance would then be part of the loop gain equation and might adversely impact the frequency response.

Figure 14 illustrates a simulation of this low-power inverting input differential I/O example where a dual VFB device, the OPA2822, is also shown.
Figure 14. Inverting input differential I/O frequency response.

That part is a unity gain stable, 200 MHz GBP device so this noise gain of six configuration shows about 35 MHz bandwidth versus >150 MHz bandwidth for the OPA2684.

Fully differential amplifiers are essentially VFB devices with an added output common-mode control loop. Instead of an internal differential to single-ended conversion, such as standard op amps require, these devices continue the signal path to the output differentially. All of the applications discussed in Part 1 for VFB devices would also be suitable for an FDA device adapted to a differential signal path. However, there are at least two types of application circuits where the FDA provides a compelling solution as compared to standard VFB implementations.

Application B
A dc-coupled, single-ended input to differential output with output common-mode control can best be implemented with an FDA device. One of the key considerations in this design is to match the feedback divider ratios on each side of the FDA circuit, including the signal source impedance. It is also important to understand that the common-mode control loop is level-shifted from the input to the output by setting up a common-mode current in the feedback paths. Therefore, the source must be able to sink or source a portion of this dc common-mode current. (See Reference 2 for a discussion of basic FDA operation and applications.)

Figure 15 shows an example circuit using the THS4511, a very wideband, single, 5V-supply FDA that includes ground in its input common-mode range.
Figure 15. Single-ended input to differential output using the THS4511.

This feature makes the THS4511 particularly useful for converting a single-ended, ground-referenced signal that swings only above ground into a differential output around a common-mode voltage.

The THS4511 shows a very high full-power bandwidth with its 2 GHz GBP and 4900 V/μsec differential slew rate. These two characteristics together give an exceptional pulse response in a dc-coupled single to differential conversion. Figure 16 shows the simulated frequency response.
Figure 16. DC-coupled single to differential frequency response.

Application C
Differential-input-to-differential-output circuits with very low distortion can clearly benefit from the FDA topology. Where a low IF requirement needs the best third-order intermodulation spurious suppression using modest quiescent power levels, a transformer-coupled FDA implementation provides a surprisingly low-noise figure with exceptionally low harmonics.

Figure 17 shows an example of this type of circuit using the very wideband THS4509.
Figure 17. Very low noise and distortion IF amplifier using the THS4509.

This example gives a noise figure of 8.2 dB (from a 50 Ω source) while also giving >100 dB two-tone spurious free dynamic range (SFDR) through 70 MHz for 2 Vpp outputs. This performance is equivalent to a 54 dBm third-order intercept in an FDA using approximately 200 mW quiescent power.

The 1:1.4 input turns-ratio transformer reflects the 100 Ω differential input impedance of the FDA circuit to a 50 Ω termination (Reference 3 discusses this circuit and measured performance in detail). In this case, the transformer becomes the bandwidth limiting element. Figure 18 shows the simulated performance, including the transformer model.
Figure 18. Small-signal bandwidth for the transformer-coupled FDA.

This single to differential gain of 7 V/V shows up as a low frequency gain of 16.9 dB. The first rolloff above is the transformer while the second break in the rolloff curve is the appearance of the THS4509 bandwidth limitation. As can be seen, this circuit gives very good flatness through 200 MHz IF frequencies.

Conclusions
Today's circuit designers enjoy a tremendous selection of high performance wideband op amps. Newer and increasingly better devices are emerging steadily, showing constant improvement on the speed versus power tradeoff. Where the feedback element needs to be adjustable or is capacitive, a voltage feedback or fully differential device is the preferred solution. Where gain flexibility or frequency response shaping is desired in a low-power implementation, and dc precision is a secondary concern, a current feedback device would be the first choice. Many applications can use either a VFB or CFB device where issues such as the speed/power tradeoff, noise or dc precision become the deciding factor.

Hernández Caballero Indiana
Asignatura: CAF
Fuente:http://www.planetanalog.com/features/showArticle.jhtml;jsessionid=NLLCHX2JOWNJUQSNDLPCKH0CJUNN2JVN?articleID=196702013

Application basics when using wideband voltage and current feedback op amps, Part 1 (of 2)



Understand the basics of current and voltage feedback op amps and where they fit, along with constraints and implications

With both current and voltage feedback operational amplifiers (op amps) available to the system designer, how do you select which device to use? This two-part article discusses applications most suited to each type of op amp, and why certain applications are unsuitable for one or the other type of amplifier. Widely-used circuits are shown with example designs. The emerging fully differential amplifier type of amplifier (a special case of a voltage feedback device) is also shown along with several suitable applications. Part 1 reviews the internal differences between the two types of op amps and presents some key applications most suitable to voltage  feedback type devices.

Initial amplifier selection criteria

There is a bewildering array of possible op amps for a designer to select from in any given application. However, there are distinct internal differences between the two major types of amplifiers: voltage feedback (VFB) and current feedback (CFB). These differences may lead a designer to choose one over the other in certain applications. A newer type of op amp, the fully differential amplifier (FDA), is a type of voltage-feedback op amp that includes an output common-mode control loop. It has the same application emphasis as a standard voltage feedback amplifier, as well as several specific applications ideally suited to this type of amplifier.

Before giving any attention to the type of amplifier to use, most designers first should consider the output signal requirements (for example, maximum desired output Vpp and output current, as well as load type) and necessary dynamic characteristics such as settling time, full power bandwidth, or a distortion requirement. Using these specifications, the universe of possible amplifiers can be narrowed to devices that can handle the correct range of supply voltages needed to deliver the output Vpp, and then limited further to a minimum supply current versus desired output dynamic characteristic. Normally, a CFB gives the best power efficiency for higher-frequency dynamic range needs, while a VFB generally has better noise and/or DC precision, and is the part of choice for certain types of circuits.

Internal comparison of voltage and current feedback op amps

To understand why some circuits work better with one or the other type of amplifier, you need to first understand the internal topology of each amplifier and their resulting transfer functions. Compare a simplified expression for the Laplace transfer function written in loop gain format. Figure 1 shows the internal block diagram of a VFB along with the internal model and closed loop transfer function. A(s) is the frequency-dependent open-loop gain of the op amp. It is modeled here as a single dominant pole response. Figure 1 uses an inverting gain configuration for comparison purposes because the FDA device is most clearly understood as a differential inverting configuration.


Figure 1. Open loop to closed loop conversion for voltage feedback.

The transfer function has the desired gain in the numerator (-RF/RG) and a loop gain (LG) term in the denominator that determines the frequency response. One way to understand this LG is to plot [20 · Log (A(s))] and [20 · Log(1+RF/RG)] on the same grid. The key issues for this plot are: 1) the separation between these two curves at lower frequencies (this separation shows the magnitude of the loop gain); and 2) at what frequency they intersect.

At the point of intersection, sometimes called loop gain crossover, the term in the denominator of the transfer function drops to 1 + 1e-jθ (where jθ is the angle of that expression). The important check is that this angle is well away from -180 degrees to avoid closed loop oscillations or peaking. Figure 2 shows an example loop-gain plot of these two terms, where a simple single-pole response for A(s) is assumed and no phase added by the feedback network.


Figure 2. Loop gain and phase for a VFB op amp. X-axis is log frequency.

In Figure 2, the (1 + RF/RG) term is assumed to add no phase impact to the loop gain; only the open-loop phase of A(s) introduces loop phase shift in this simple example. This graph is the lower plot, where the loop gain crossover frequency is mapped down to find the remaining phase margin at that frequency.

Note that it is impossible for the VFB to change the signal gain without changing the loop-gain characteristic. This effect is where the gain bandwidth product (GBP) concept arises. If the gain increases, the bandwidth must decrease. If the gain decreases, the bandwidth increases, and the phase margin will normally decrease. (See Reference 1 for a more complete discussion.)

In contrast, the internal workings of a CFB op amp are quite different. Those blocks and the resulting closed loop transfer function for the inverting configuration are shown in Figure 3 where, again, an inverting configuration is used and a single pole internal transimpedance gain is assumed for Z(s).


Figure 3. Current feedback internal structure and closed loop response.

The CFB uses a unity-gain buffer across the two inputs. This forces the inverting node voltage to follow the non-inverting input voltage. That buffer is intended to present a low impedance to the inverting port, where a low level error current may be sensed and passed on to the output through a transimpedance gain. It is this internal transimpedance gain, Z(s), which acts in the same fashion as the VFB A(s) to provide a high DC gain with a dominant pole.

When the loop is closed, the same desired gain is achieved; but the loop-gain terms are very different. The CFB amplifier has a loop gain set by the forward transimpedance gain compared to the feedback impedance. Figure 4 plots the loop gain and phase for a typical CFB amplifier, where the feedback element is assumed to introduce no phase shift in this simplified analysis.


Figure 4. Current feedback (CFB) loop gain and phase plots. X-axis is log frequency.

This plot looks very similar to the VFB plot except that the external element setting the loop gain is the feedback impedance alone. The greatest difference between the VFB and CFB amplifier is that the loop gain can be set separately from the signal gain using the feedback impedance. The feedback impedance becomes an independent compensation element, where the gain can then be set using the normal gain equations from whatever impedance value is selected for RF. This approach gives what is sometimes called gain bandwidth independence for the CFB amplifier. (See Reference 1 for a more detailed discussion.)

The final type of amplifier to be considered here is the new fully differential amplifier (FDA). Figure 5 shows the configuration and closed loop transfer function for this type of amplifier.


Figure 5. Fully differential amplifier (FDA) structure and transfer function.

If the two feedback networks are allowed to be unmatched, the transfer function is fairly complicated. If they have a matched divider ratio (see Figure 5), the equations simplify to be the same as the inverting VFB transfer function. The effect of the separate common-mode loop is not shown. This loop acts to servo the average output voltage to a value set by a VOCM input pin voltage (see Reference 2 for a more complete discussion of the FDA topology). For applications considered in this article, the FDA is treated as differential VFB device.

Application imperatives

In the range of possible applications for wideband op amps, several types must use VFB devices. These circuits can sometimes be forced to work using CFB devices, but usually at the cost of complexity and poorer performance. Any circuit that requires flexibility in the feedback element and/or capacitors in the feedback will have stability problems with a CFB device. This instability is the result of the loop gain depending on the feedback impedance. Therefore, any circuit that needs a lot of flexibility in that impedance is going to interact with the achievable frequency response if a CFB amplifier is used.

The following example circuits should use a VFB device for implementation.

A. Transimpedance amplifiers. These circuits take a current source input, typically from a capacitive source, and turn it into a voltage at the output. The feedback resistor is the gain element and normally needs a compensation capacitor in parallel for correct operation. Figure 6 shows an example using the OPA657, a very wideband JFET input device uniquely suited to the transimpedance application. This device is a non-unity gain stable VFB with relatively low input noise voltage and very high gain bandwidth product. For a given diode source capacitance, the amplifier gain bandwidth product (GBP) determines the achievable bandwidth and/or transimpedance gain (Reference 3).


Figure 6. Example transimpedance design using the OPA657.

In this example, the 500 kΩ along with the 200 pF diode capacitance gives a noise gain zero at approximately 1.6 kHz. With the feedback capacitor set to achieve a maximally flat Butterworth response, the resulting F-3dB will be at the geometric mean of this zero and the 1.6 GHz gain bandwidth product of the OPA657. (Reference 3 gives a detailed analysis for compensation and noise in a transimpedance design.) Figure 7 shows the 1.6 MHz transimpedance bandwidth in a simulated frequency response of Figure 6.


Figure 7. Simulated transimpedance frequency response of Figure 6.

B. Integrator based circuits. These applications are looking for a capacitive feedback to implement an integrator function. A good example would be the Multiple feedback (MFB) active filter. Figure 8 shows an example using the OPA820, a low-noise, wideband voltage feedback op amp uniquely suited to this application.

Embedded within this filter circuit is an integrator configuration that arises from the 200 Ω and the 12.5 pF feedback capacitor.

At very high frequencies, that capacitor shorts out, giving a local unity-gain feedback for the amplifier. This result suggests that a unity gain stable VFB should be used in this type of circuit to avoid high frequency oscillations. This particular example is targeting a 10 MHz low-pass Butterworth response with an in-band gain of -4 V/V. (Reference 4 describes how to choose the R's and C's in the MFB filter for improved noise and distortion.)

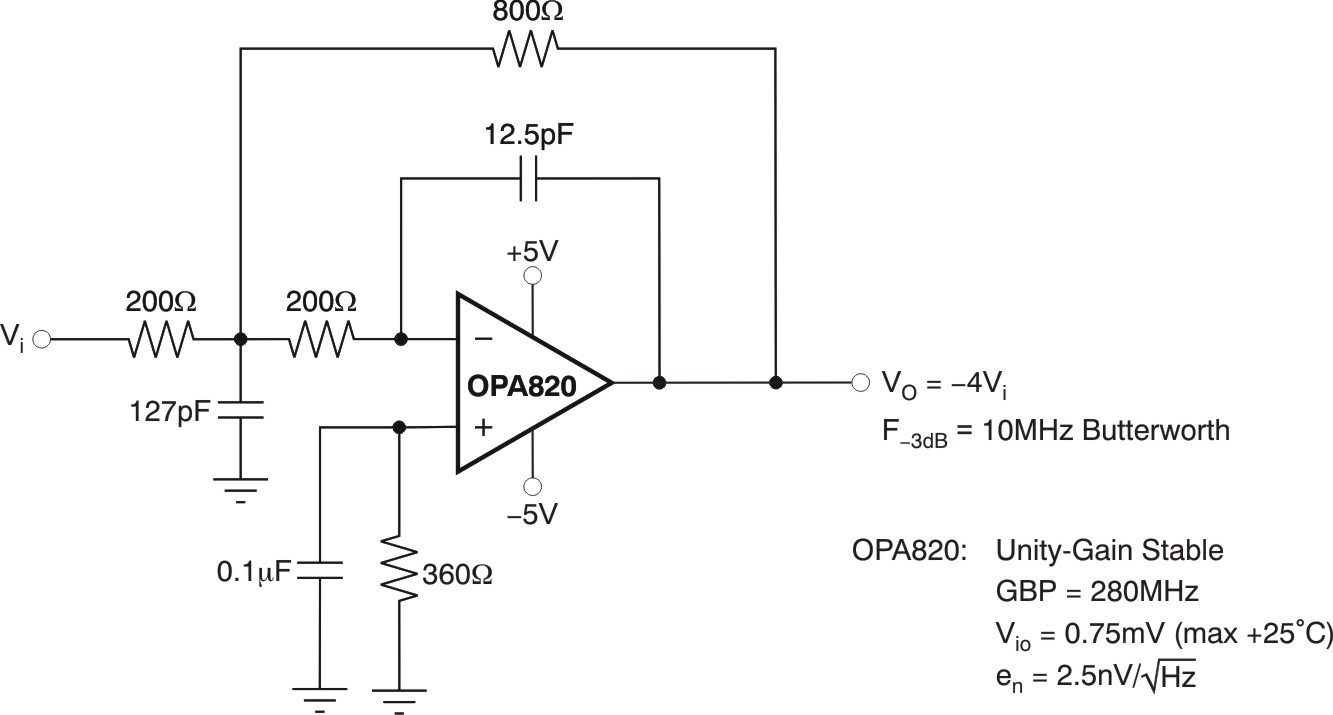

Figure 8. Example MFB filter using the OPA820.

Since the local feedback capacitor shorts out at higher frequencies, this circuit normally needs to use a unity gain stable VFB. (Reference 4 suggests a path to improved phase margin in this circuit using non-unity gain stable amplifiers.) One of the advantages of the MFB design is improved stopband rejection (over the Sallen-Key filter), and very good filter accuracy versus finite amplifier gain bandwidth product. This filter tends to achieve a slightly lower Q than that targeted as the Ω0 moves closer to the amplifier GBP.



Figure 9. Simulated 10 MHz Butterworth filter of Figure 8.

C. Circuits with simple feedback poles implemented as an RC in the feedback network. Designers often implement a low-pass pole in this fashion. Since the feedback impedance is now a parallel RC network, this circuit must be implemented with a VFB, and preferably a unity-gain stable VFB. This type of simple filtering works best for inverting signal paths. In that case, the input signal sees the gain resistor as an input impedance that converts the signal to a current into the inverting node. From there, it continues into the feedback impedance to set the gain to the output.

This type of pole implemented for a noninverting configuration has a pole/zero pair because the gain transitions from a DC value set by the resistors to unity gain as the feedback capacitor shorts out at higher frequencies. Therefore, this circuit drops to unity gain if implemented as a non-inverting stage. In the inverting configuration, the gain continues down with a one pole response. It is important to notice that a unity-gain stable amplifier would be preferred because the noise gain drops to unity for either the inverting or non-inverting application.

Figure 10 shows an example using the THS4281 (a low-power, rail-to-rail output VFB) in the inverting configuration. In this example, the signal path was AC-coupled through a blocking capacitor. This allowed the non-inverting bias voltage to be set to mid-supply and then have a DC gain of one to the output. Because the THS4281 includes the negative rail on the input, an alternative DC-coupled design is possible by changing the lower 8 kΩ resistor on the non-inverting input to 889 Ω and removing the input blocking capacitor.

This AC-coupled design allows a direct comparison of this circuit to a low-power CFB that does not have an input range extending to ground. That device, the OPA684, also uses less than 2 mA supply current and gives greater than 100 MHz bandwidth in most applications. Figure 11 compares the simulated response of this 1 MHz one pole rolloff circuit of Figure 10, using both the THS4281 and the OPA684 (where the OPA684 would use a single +5 V supply). Both parts give the expected one pole rolloff, but the OPA684 shows a very anomalous response at higher frequencies indicative of probable oscillations.


Figure 10. Inverting band-limited design using the THS4281.


Figure 11. Simulated inverting low pass filter design.

D. Wideband DC-coupled amplifiers with good DC precision. VFB op amps have better input offset voltage and (for bipolar amplifiers) matched input-bias currents. As a result, considerably lower output DC-offset voltage and drift can be delivered as compared to equivalent CFB implementations. This consideration becomes more important as the required gain increases. Figure 12 shows an example high gain, DC-coupled inverting amplifier stage using a non-unity gain stable VFB. The OPA846 offers very good input offset voltage and offset current along with a low 1.2 nV/√Hz input voltage noise.

To take advantage of this low noise, the gain of -20 circuit in Figure 12 implements a matched 50 Ω input impedance using only the input resistor and then a 1 kΩ feedback resistor. If a 50 Ω DC-coupled source impedance is assumed, the required bias current cancellation resistor on the non-inverting input would be 100 Ω| in parallel with 1 kΩ = 90.9 Ω. Decouple this resistor with a parallel capacitor to reduce its high-frequency noise contribution.

Another interesting aspect of this circuit is the noise gain (NG), which is also the gain for the input offset voltage, is reduced below the inverting signal gain because of the 50 Ω source resistor. Including that value in the NG equation gives an NG = 11 while the signal gain will be -20.


Figure 12. Inverting gain of -20, low-output Vos design, using the OPA846.

This high-gain inverting implementation using the OPA846 can also be done using a low-power current feedback amplifier. For comparison, an OPA684 low-power CFB is compared in Figure 13 for the simulated frequency response. Since high equivalent gain bandwidth is a natural advantage for CFB amplifiers, the OPA684 gives very similar small signal bandwidth to the OPA846 of approximately 150 MHz. The OPA684 uses 1.8 mA quiescent current while the OPA846 uses 12.9 mA.


Figure 13. Gain of -20V/V simulated performance using VFB and CFB devices.

A calculation of the maximum output DC offset error band at 25 °C for the OPA684 shows the relatively poor DC precision offered by the CFB implementation. That calculation must treat the two input bias currents separately, because they are not physically related in the CFB input stage as they are in most VFB input stages. Leaving the 90.9 Ω resistor on the non-inverting input, the total output DC error band, using the OPA684 specified maximum DC errors at 25 °C, is:

Maximum Vos =
±3.5 mV·11 V/V±10μA·91 Ω·11 V/V± 16μA·1 kΩ =
±64.5 mV

So, while the OPA684 can match the speed of the OPA846 in this higher gain application, if output DC precision (or lower noise) is desired, the VFB design offers considerable advantages.

Conclusions to Part 1

In Part 1, we reviewed the key internal differences between VFB and CFB op amps as a means of identifying applications that must use the VFB topology over the CFB devices. These examples generally fall into two categories: applications that need a capacitive feedback for some reason; and circuits that need to emphasize DC precision and/or the lowest output noise. Part 2 will continue with applications uniquely suited to the CFB topology, and then introduce the newest member of the wideband op amp universe—the fully differential amplifier. Part 2 will conclude with illustrations of a few applications uniquely suited to this amplifier

Hernández Caballero Indiana
Asignatura: CAF
Fuente:http://embedded.com/design/196701711
